Side-emitting transparent led display

Description

We are a prominent manufacturer and supplier of Side-emitting transparent led display, committed to providing you with exceptional products. As manufacturers, suppliers, and wholesalers, we stand out in the market with high quality, competitive pricing, and outstanding service. Whether you’re in search of manufacturers, need suppliers, or considering wholesale options for Side-emitting transparent screens,, we can meet your requirements.

Our pride lies in the remarkable technology of the Side-emitting transparent screens,. This Side-emitting transparent screens, not only retains the transparency of glass but also showcases stunning images and videos through side-emitting illumination. Whether used for retail store window displays, museum exhibitions, or commercial showcases, the Side-emitting transparent screens, captivates attention by presenting brands and information in a striking manner.





We hold relevant certification certificates, ensuring a reliable quality guarantee. Over the years, we’ve collaborated with numerous well-known brands, amassing rich experience. Our products are exported to multiple countries, earning high praise from customers. Our strengths lie in continuous technological innovation, personalized customization capabilities, and professional customer service. Whatever Side-emitting transparent screens, solution you need, we have the capability to fulfill your requirement

Product Features

• Ultra-high permeability, up to 90%Extremely small dot pitch, the minimum dot pitch is 3.91mm
• Can be shaped
• Little dependence on the keel bracket
• Easy to install
• maintenance is very simpleThe industry’s first outdoor transparent screen

Application

• Glass Curtain Wall
• Glass Window
• Bar/Tea/Coffee Shop
• Sightseeing Elevator
• Shaped Glass Curtain Wall
• Canopy Ring Curtain Color Curtain

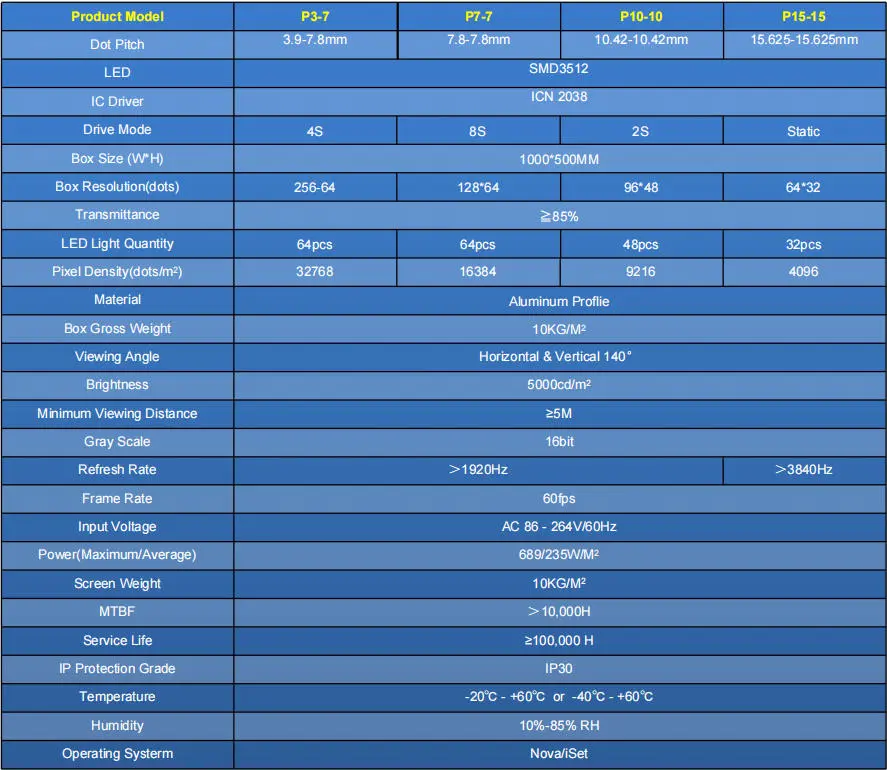

Product parameters



Product Model	P3-7	P7-7	P10-10	P15-15
Dot Pitch	3.9-7.8mm	7.8-7.8mm	10.42-10.42mm	15.625-15.625mm
LED	SMD3512	SMD3512	SMD3512	SMD3512
IC Driver	ICN 2038	ICN 2038	ICN 2038	ICN 2038
Drive Mode	4S	8S	2S	Static
Box Size (W*H)	1000*500MM	1000*500MM	1000*500MM	1000*500MM
Box Resolution(dots)	256*64	128*64	96*48	64*32
Transmittance	≥85%	≥85%	≥85%	≥85%
LED Light Quantity	64pcs	64pcs	48pcs	32pcs
Pixel Density(dots/m²)	32768	16384	9216	4096
Material	Aluminum Profile	Aluminum Profile	Aluminum Profile	Aluminum Profile
Box Gross Weight	10KG/M²	10KG/M²	10KG/M²	10KG/M²
Viewing Angle	Horizontal & Vertical 140°	Horizontal & Vertical 140°	Horizontal & Vertical 140°	Horizontal & Vertical 140°
Brightness	5000cd/m²	5000cd/m²	5000cd/m²	5000cd/m²
Minimum Viewing Distance	≥5M	≥5M	≥5M	≥5M
Gray Scale	16bit	16bit	16bit	16bit
Refresh Rate	＞1920Hz	＞1920Hz	＞1920Hz	＞3840Hz
Frame Rate	60fps	60fps	60fps	60fps
Input Voltage	AC 86 – 264V/60Hz	AC 86 – 264V/60Hz	AC 86 – 264V/60Hz	AC 86 – 264V/60Hz
Power(Maximum/Average)	689/235W/M²	689/235W/M²	689/235W/M²	689/235W/M²
Screen Weight	10KG/M²	10KG/M²	10KG/M²	10KG/M²
MTBF	＞10,000H	＞10,000H	＞10,000H	＞10,000H
Service Life	≥100,000 H	≥100,000 H	≥100,000 H	≥100,000 H
IP Protection Grade	IP30	IP30	IP30	IP30
Temperature	-20℃ – +60℃ or -40℃ – +60℃	-20℃ – +60℃ or -40℃ – +60℃	-20℃ – +60℃ or -40℃ – +60℃	-20℃ – +60℃ or -40℃ – +60℃
Humidity	10%-85% RH	10%-85% RH	10%-85% RH	10%-85% RH
Operating System	Nova/iSet	Nova/iSet	Nova/iSet	Nova/iSet
